 Blake has his own version of a paddle clip belt and he has shared with us how he made it below. The only similarity with the one I initially made is the fact that it holds a paddle. He made his own clip out of PVC and used a lashing strap for the belt. Both versions work as designed and we’ve found them to be extremely helpful when stand up kayak fishing. Not satisfied, he went a step further and made one similar to the Dawgknots belt out of braided paracord. He showed us how to do that as well.

Materials will be listed as they are used in the steps below.

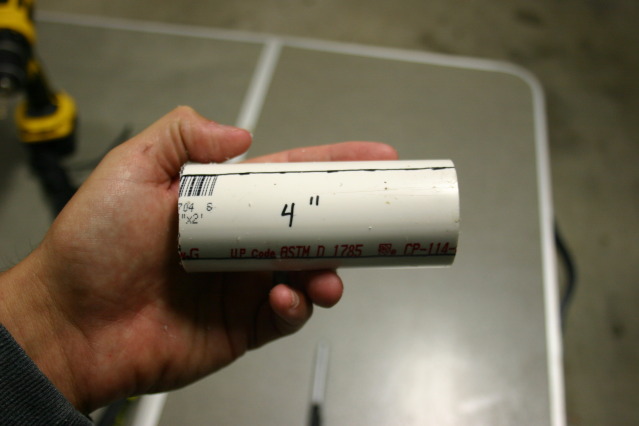

Step 1. Start off with a 4” piece of 1 ¼” PVC pipe. If your paddle has a thin handle, you may be able to get away with 1” pipe, but the bigger diameter is more universal. I also make marks on the top and bottom of the printing on the pipe (it’s just an estimation that is a little narrower than the diameter of your paddle handle).

IMG_0281

Step 2. Using a hacksaw (I tried a Dremel tool, but it had too much power and I ended up messing it up), cut along the lines that you drew. Use some sandpaper to smooth out any rough or sharp edges. I used 100 grit. Test the clip on your paddle to make sure that it snaps over and that it’s not too tight that it won’t fit in or too loose that the paddle falls out.

IMG_0282

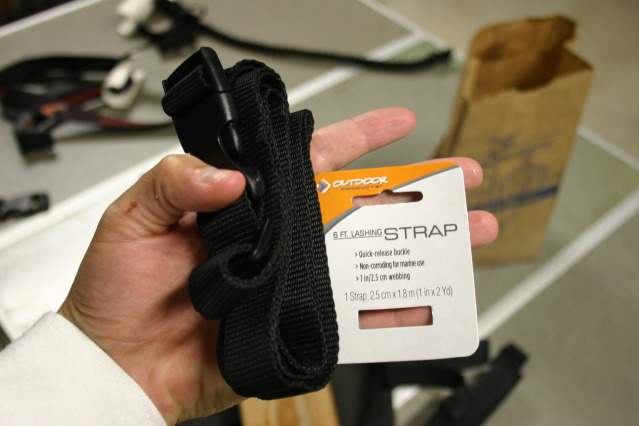

Step 3. Take your strap (purchased at Walmart in the camping section for $2 and change) and place it along the back of the PVC. Use a marker to put a dot on the PVC on the top and bottom of the strap ½” from each end of the PVC. Use a drill to make a hole at all the spots that you made

IMG_0330

IMG_0284

IMG_0285

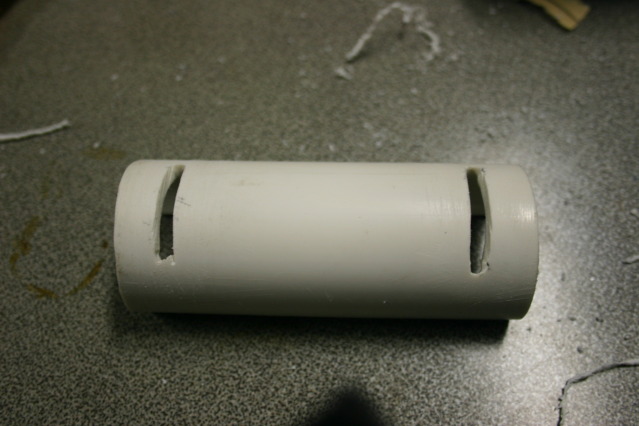

Step 4. Connect the edges of the holes and then use your hacksaw to cut out the material in between the holes. Sand all edges smooth.

IMG_0286

IMG_0287

IMG_0289

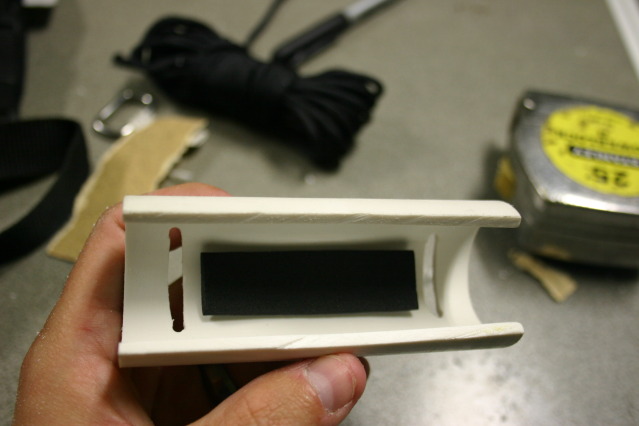

Step 5. Cut a piece of 3mm craft foam (purchased in sheets at Hobby Lobby) and use some contact cement to attach it between the two slots. You may have to use some thicker/thinner foam to suit your paddle, but 3mm seems to be pretty versatile.

IMG_0290

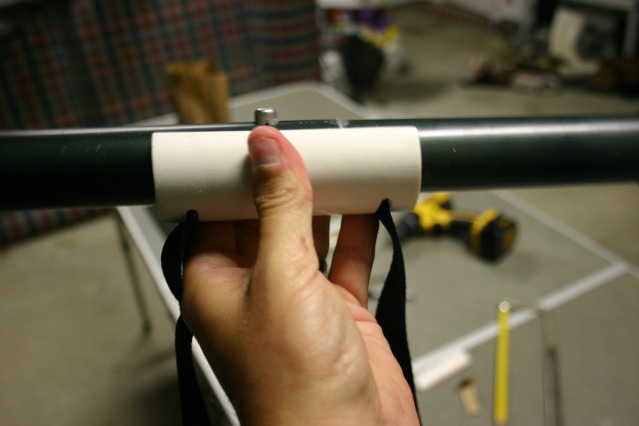

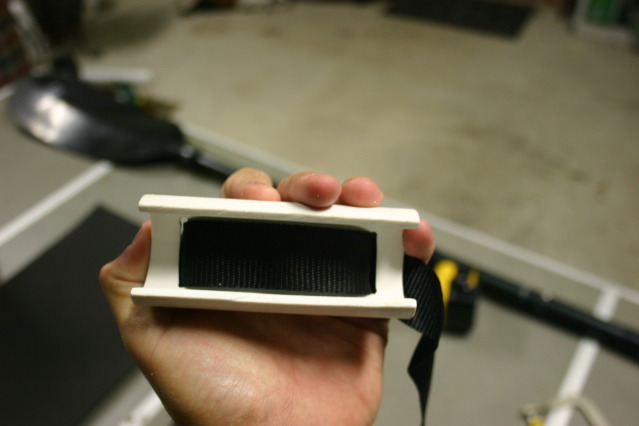

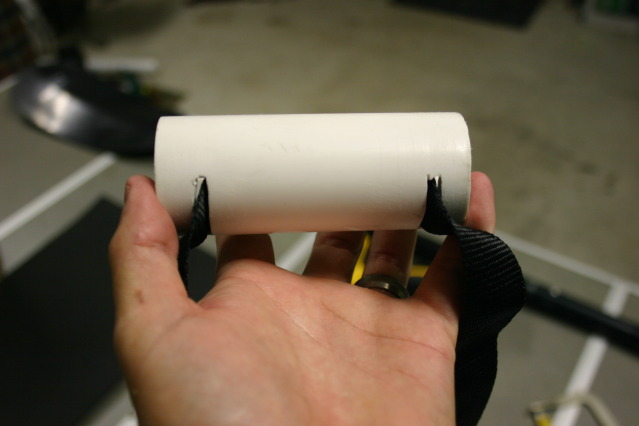

Step 6. String your strap through the holes in the clip. I like to clip it onto the paddle and let the cement set.

IMG_0291

IMG_0292

IMG_0293

The paddle clip belt will work perfectly as is. However, if you are anything like me and can’t leave “well enough” alone, then check out the next few steps on adding a braid onto the strap.

IMG_0295

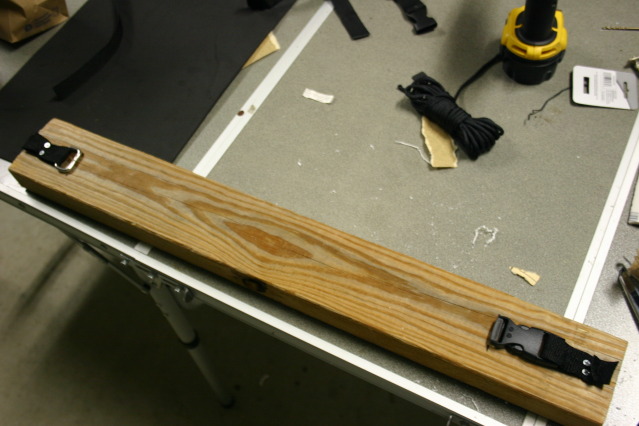

Step 7. The first thing to do is to make a jig out of a spare piece of wood. The jig I used is 20” from end of metal ring (purchased at West Marine) to the end of the female end of the clip (use the male end and some extra strap to secure the clip and ring to the jig.)

IMG_0296

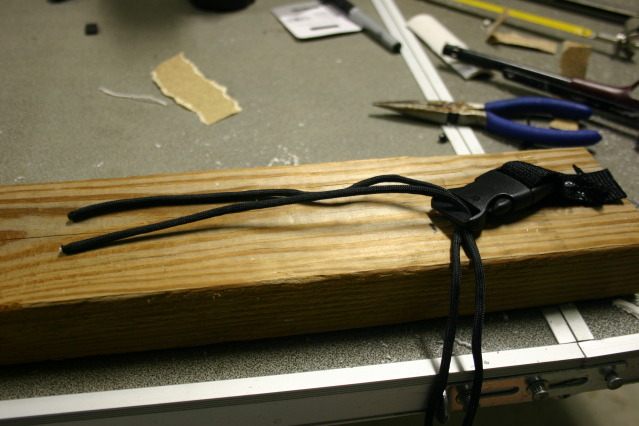

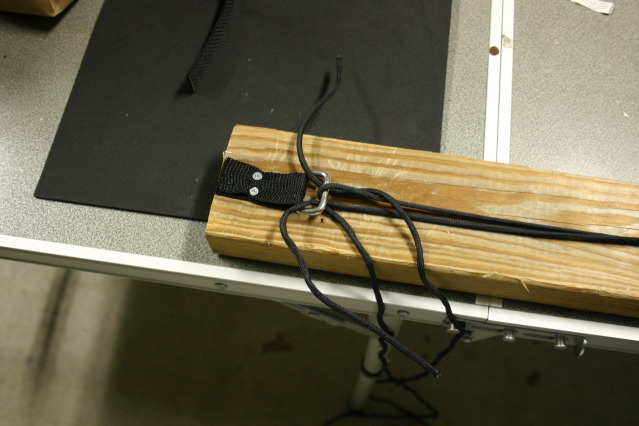

Step 8. I purchased the Paracord at Lowe’s. It came in 50’ length of 550lb strength (think it was around $10). To make a 20” braid, you’re going to need 25’ of cord. String the cord through the ring. Then string both strands through the female clip, then back through the ring from the bottom to the top.

IMG_0297

IMG_0298

IMG_0299

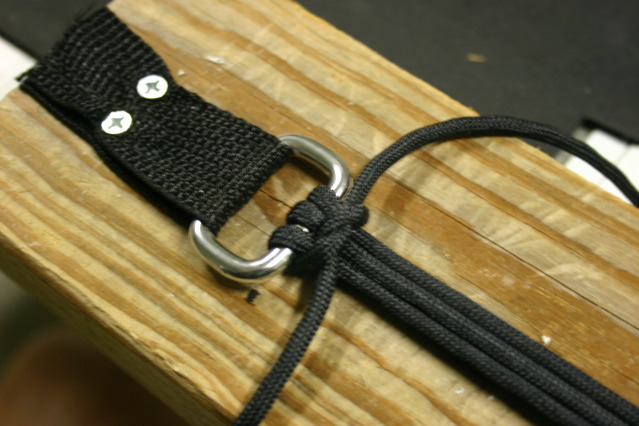

Step 9. Even out the tips of the cord and pull all the slack from between the clips and ring. The first not of the braid is a simple overhand knot

IMG_0301

Step 10. Looking at your first overhand knot, you will notice that one cord comes out of the bottom of the knot and the other comes out of the top. Always start with the cord coming out of the bottom. Bring the bottom cord over and across the top.

IMG_0302

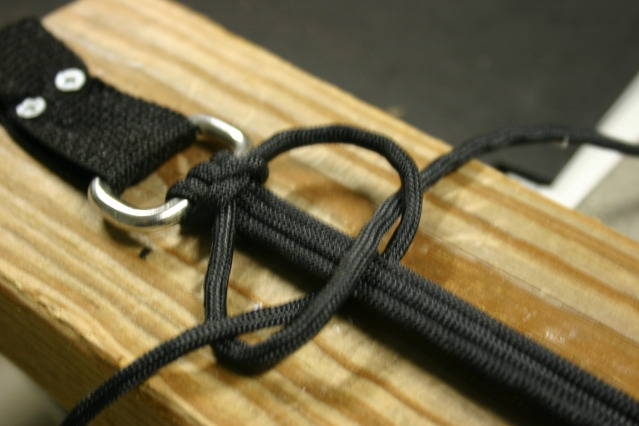

Step 11. Bring the top cord over the bottom cord, under the strands, and through the loop made by the bottom cord. Pull tight.

IMG_0303

IMG_0304

IMG_0305

Step 12. Repeat the steps 10 and 11. Pull tight.

IMG_0306

IMG_0307

IMG_0308

Step 13. Repeat the steps all the way down the strands to the clip.

IMG_0309

IMG_0312

IMG_0313

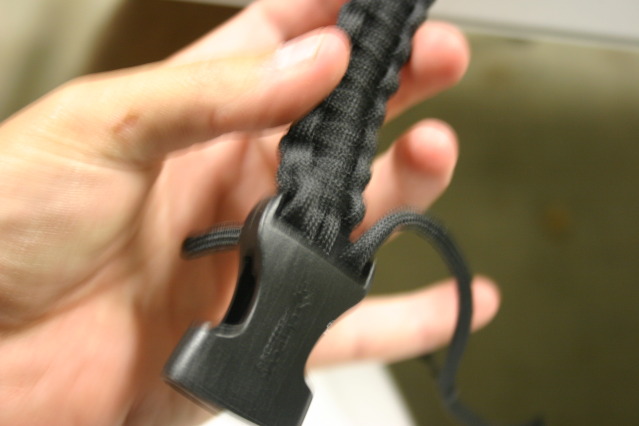

Step 14. String the tag ends through the clip with one going each way so that you end up with a tag on either side of the clip.

IMG_0314

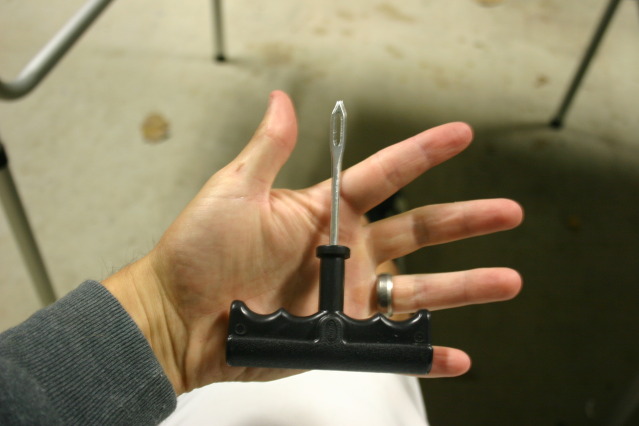

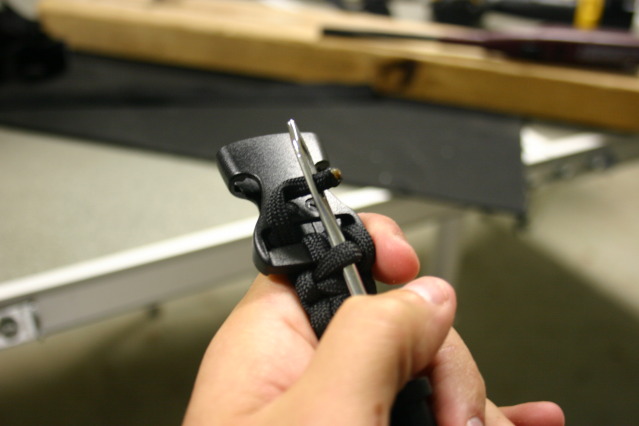

Step 15. Use a leather puller (I used a tire plug tool, but a baseball glove leather puller would work better as it is not open on the end) to pull one tag end under one knot on the braid. After it’s pulled through, do your best to tighten up the knot that you just went under.

IMG_0315

IMG_0316

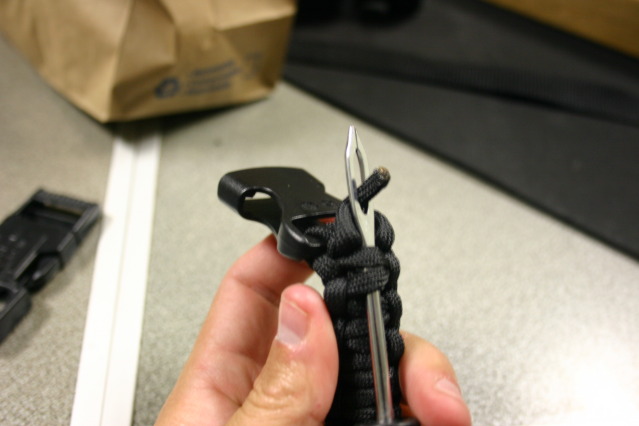

Step 16. Keep threading the tag end under the knots until you are confident that it is secure. I went under 5 on either side. Trim the tag end and tuck it under one of the knots. One side done.

IMG_0317

IMG_0318

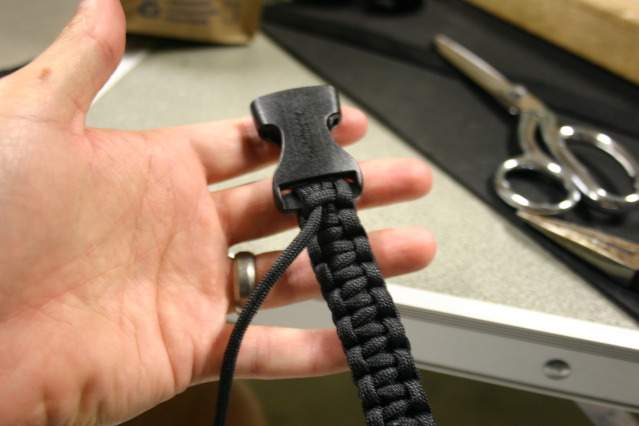

Step 17. Do the same on the other side. The braid is complete. Now you have 25’ of unknotted cord to use if you should ever need it. I will just take a while to undo the braid

IMG_0319

IMG_0320

Step 18. With one side of the strap attached to the male end of the clip, thread the strap through the ring at the end of the braid. I like to tape off the strap so that it does not slide in the ring. Sew/glue/knot the strap at the ring. I chose to sew it.

IMG_0322

IMG_0323

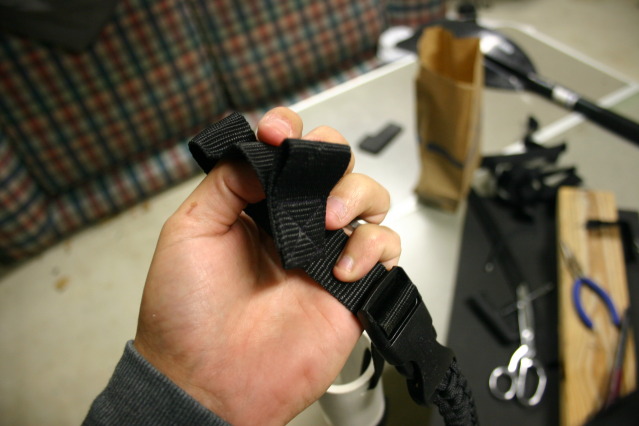

Step 19. Measure the amount of strap that you will need to fit the belt around your waist and trim it. String the strap through the paddle clip, through the male end of the clip, then sew the tag end so that it can’t pull back through.

IMG_0324

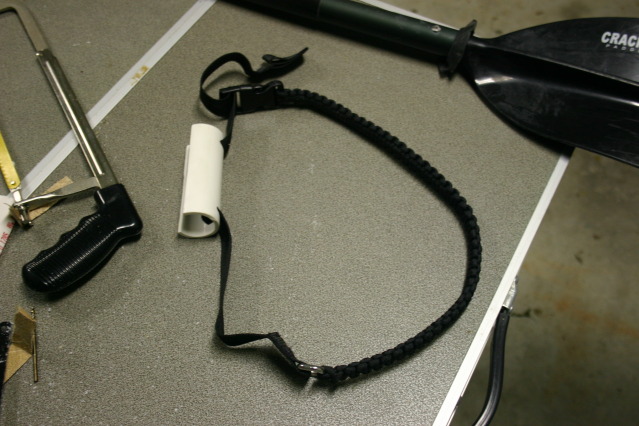

That gives you a completed paddle clip belt that has helped me catch many reds while sight fishing. Hope it works out for you.

IMG_0326

IMG_0327

IMG_0329

Advertisements

Blake recently fashioned up a rod holder for his truck bed that should work better than, well, nothing at all. He documented the process and was nice enough to share it with us. His workflow is below:

I have broken a few rods in the back of the truck when it’s loaded with ice chests, kayaks, seats, and gear. To solve this broken rod problem, I moved the rods in the cab on the passenger side with the butts on the floor and the tips near the roof in the extra cab. This works, but I have three issues with this method of transport. The first issue is the fact that the hooks tend to catch into my seats. The second is that the passenger wasn’t comfortable and was always worried about hooking themselves. The third was the noise made by rods clanging and popping corks rattling. So, I set out to design a rod holder for my truck bed that would hold the rods out of the way when the truck is fully loaded. I didn’t like how any of the aftermarket rod racks pointed the rod up in the air above the top of the cab. I’m almost positive that I would go under a low clearance area and snap them all. Here is the design that I came up with. Haven’t tested it a whole lot, but I have driven with it fully loaded without issue.

Materials:

Tip: As with all pvc projects, it’s best not to glue anything until you are sure everything fits.

– 1 ¼ “ pvc

– 4 end caps

– 2 female to female 90 degree elbows

– 2 female to male 90 degree elbows

– 2 eye bolts and nuts

– 2 bolts, washers, lock washers and nuts.

– Berkley rod holder

– JB water weld

– Exterior textured spray paint.

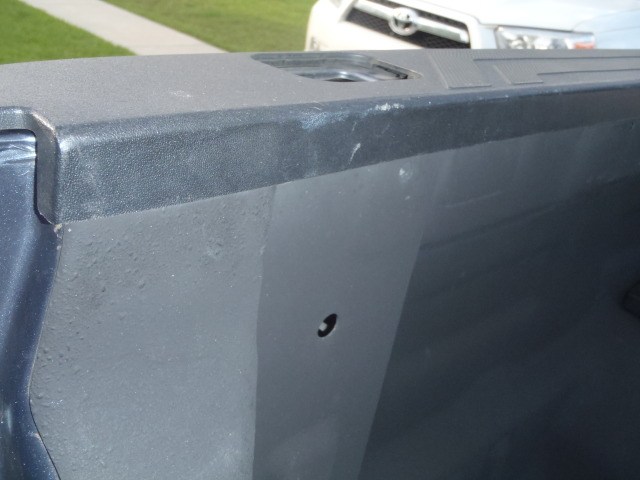

I decided to build the rod holder using the two over head rack mounting brackets located on the side of the truck bed.

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

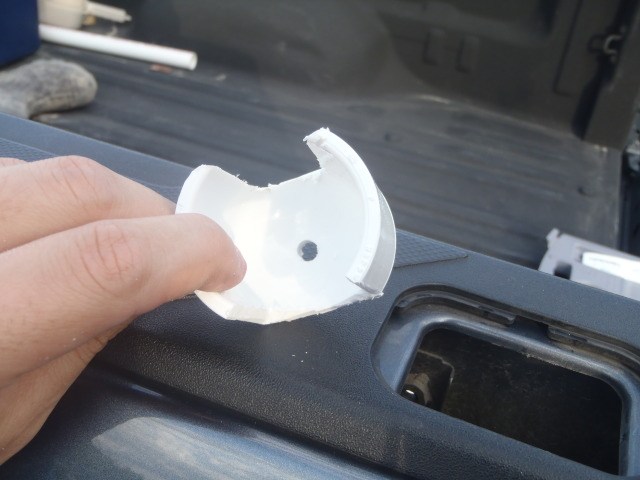

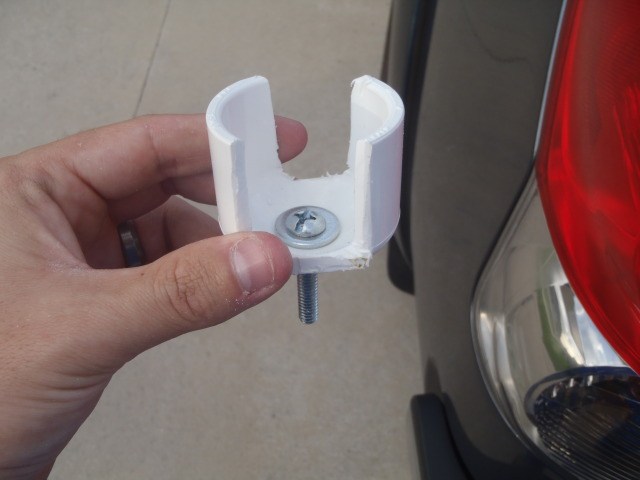

I mounted two of the end caps in the bottom of the bracket. This helped to take some of the play out of the bottom of the rod holder. I had to modify the caps to get them in the bracket. I used a dremel and a hacksaw. I used the bolts, lock washers, washers and nut to mount them. It was kind of tricky, but I was able to worm my hand up the side panels of the truck bed to get the washers and nuts on the bottom side of the bolts.

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

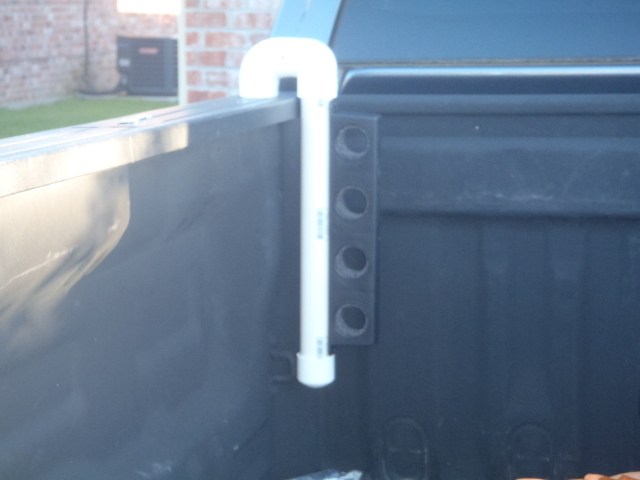

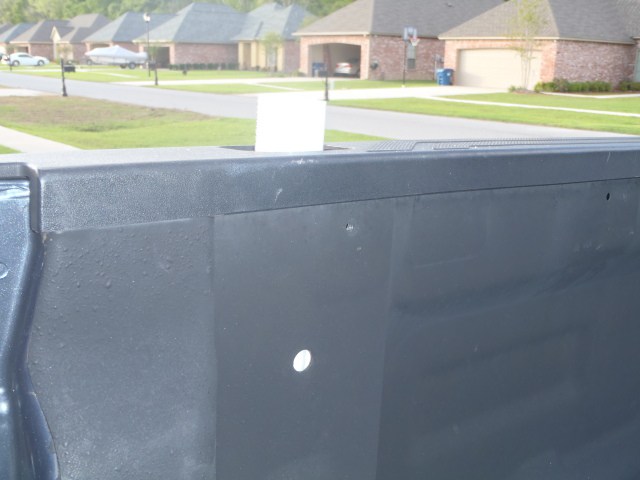

Measure two lengths of pvc to fit into the modified end caps and extend out of the bracket and above the rails of the truck bed. Then mount the 90 degree elbow.

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

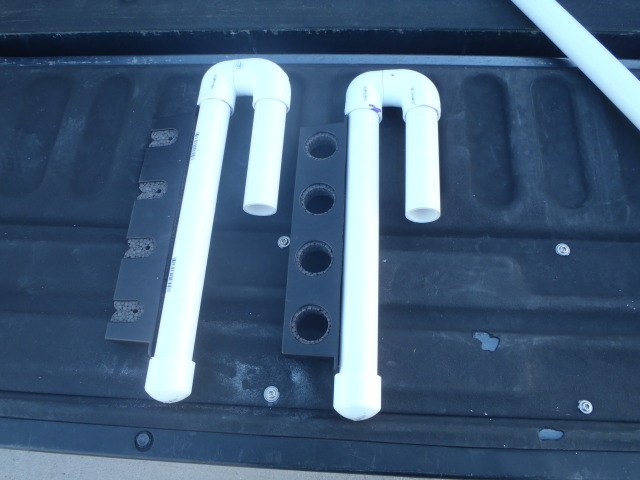

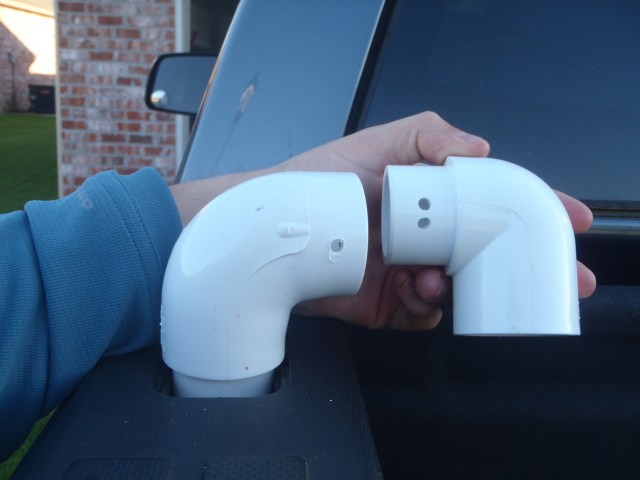

Now that the bracket is done, it’s time to start on the rod holder. I didn’t take a whole lot of pictures, but it should still be pretty self explanatory. Mount the M-F 90 elbow to one end of the pvc pipe. Then mount the rod holder to the length of pvc pipe. I initially used the wood screws that came with the rod holder and later changed them to short bolts and nuts for more security. Once the rod holder is mounted, the other cap can be fitted on the bottom. The reason for the holes in the elbows is to lock the rod holder arms in whatever position I want them in (I use the eye bolts and nuts for this).

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

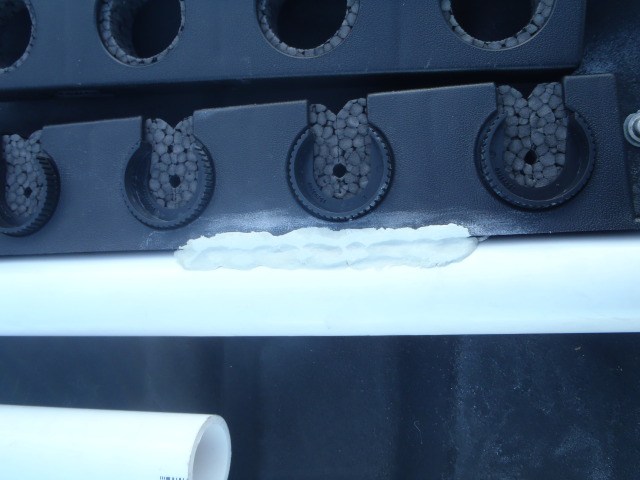

Once everything fits, it’s time for some gluing and finish work. I wanted to make these things appear as if they were welded and sprayed to match the sprayed bed liner that I have in my truck bed. I started by filling all the cracks with jb water weld. There may be better options for this, but I liked the fact that it is waterproof, sandable and paintable. Didn’t get a shot of it all puttied up, but I went around the whole rod holder and all the pvc connection areas. After a day of setting, I used an electric sander to sand it down to look like it was welded.

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

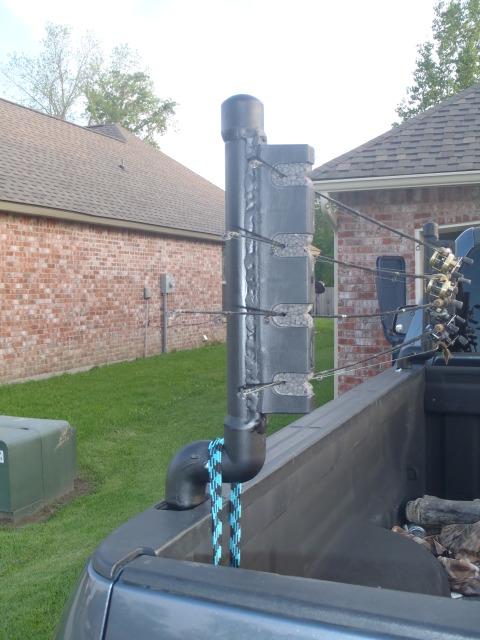

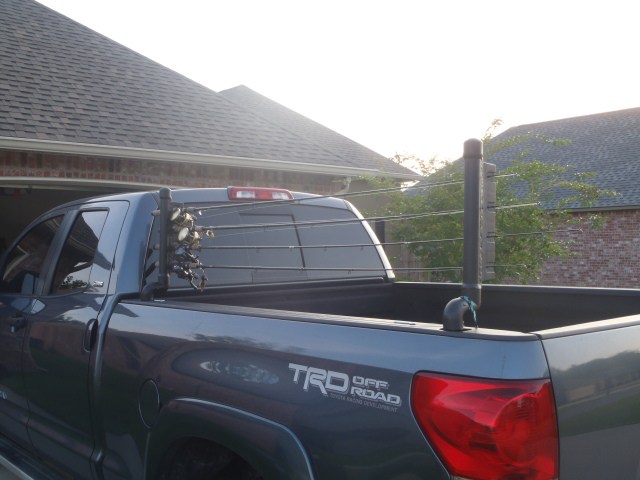

The final thing to do was spray paint it to look like the bed liner. Again, there may be a better paint for this, but it is what I had on hand. I bought some of the sprayable plastidip to try also. It just peeled off. One thing I like about the set up is that I can put it in three different positions to suit whatever circumstances that I am dealing with. See the final product below. One thing that isn’t included in the photos is that I used a hex head bolt to secure the rod holder in through the hole in the side wall of the truck bed (see earlier picture of inside of the truck bed). The hex head replaced the bungie cord that is in the pictures below.

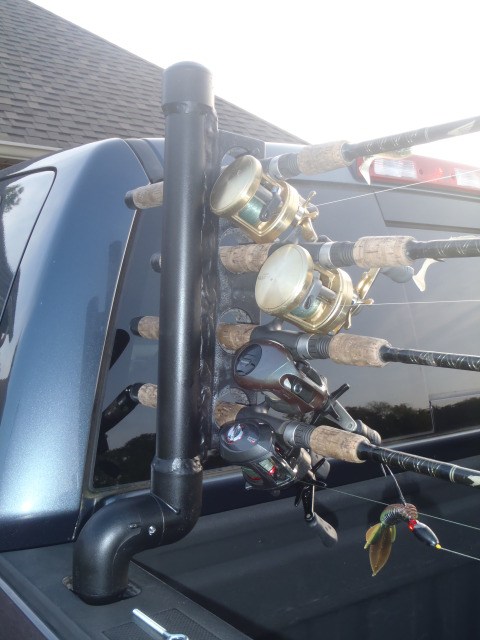

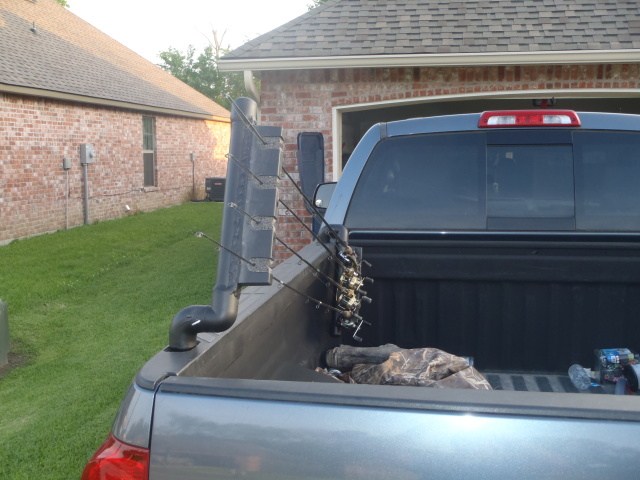

Option 1. Tailgate down. Kayaks on other side of the truck bed.

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

Option 2. Tailgate up. I use the holder in this position when I don’t have the kayaks

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

Option 3. Tailgate up. Truck bed full of stuff. Going camping or something like that.

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

Hope it works out for you . Enjoy.
